X-Rays Thickness gauges

At its core, an X-ray thickness gauge relies on a straightforward physical principle: attenuation. When a beam of X-rays passes through a material, its intensity is reduced. The amount of reduction depends on the material's composition and its thickness. By placing an X-ray source on one side of the material and a highly sensitive detector on the other, the gauge measures how much radiation gets through. If the material composition is known and consistent, any change in the detected signal directly correlates to a change in thickness . Modern systems often utilize microfocus X-ray sources—a critical component with high technological barriers—to generate precise, focused beams capable of measuring even the smallest features .

Two Distinct Technologies: Transmission vs. XRF
While the basic principle of attenuation is used for measuring the total thickness of materials like steel sheets, there is a specialized variant known as X-ray Fluorescence (XRF) . XRF is the gold standard for measuring thin coatings and platings .

• Transmission Gauges: Used for bulk materials (steel, aluminum, plastic films). The gauge measures the overall thickness by how much X-ray energy is absorbed by the entire material.
• XRF Coating Thickness Gauges: Used for measuring layers (e.g., gold on a connector pin). The X-ray beam causes the coating material to emit fluorescent energy. The intensity of this fluorescence reveals exactly how thick the coating is, often down to the nanometer scale .

Industry Applications: Where Precision Meets Production
Modern X-ray thickness gauges are indispensable in high-speed, continuous production lines where a human with a caliper could never keep up.

1. Metal Rolling Mills (Steel & Aluminum)

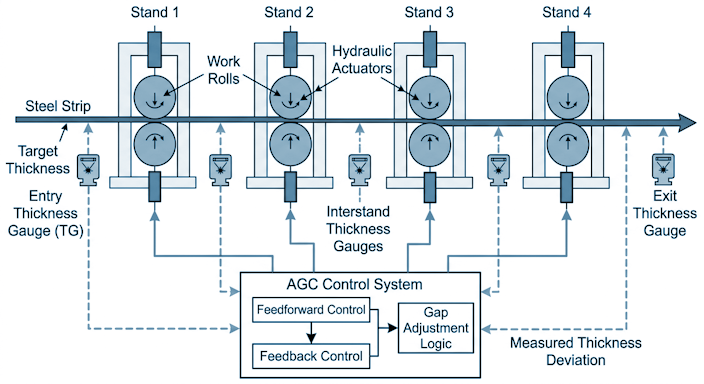

This is the largest application segment. In hot strip mills, cold mills, and plate mills, X-ray gauges provide real-time feedback to the rolling mill control system. If the steel sheet is coming out too thick or too thin, the system adjusts the rollers instantly. This ensures that the final product meets strict specifications for the automotive, shipbuilding, and appliance industries while minimizing material waste .

2. Coating and Processing Lines
In coating lines, uniformity is key. X-ray gauges monitor the thickness of applied coatings on materials used in packaging and electronics. They ensure that protective layers are neither too thin (risking corrosion) nor too thick (wasting expensive material) .

Technological Advancements
The modern X-ray thickness gauge is far removed from the bulky, analog machines of the past. Today's instruments are defined by:

• Digital Detectors: The shift to digital X-ray detectors allows for higher resolution, faster processing, and better image quality, enabling color-coded thickness maps that visually highlight variations .
• Integration and Automation: These gauges are no longer standalone. They are integrated with Programmable Logic Controllers (PLCs) and industrial computers, forming a closed-loop system that automatically adjusts manufacturing parameters in real-time .
• User-Friendly Software: Modern instruments feature intuitive software.

Balancing Performance with Safety
Given that these devices use ionizing radiation, safety is paramount. Modern X-ray gauges are designed with stringent safety features:

Enclosed Systems: Unlike older units that might have had slits for samples, modern units feature fully enclosed, interlocked chambers. The cover cannot be opened while the X-ray tube is active, ensuring zero radiation leakage .

Selecting the correct X-ray thickness gauge depends on the application. According to industry comparisons, X-ray gauges offer the highest precision—often down to ±0.1 µm or even ±0.001 µm for specific films—significantly outperforming ultrasonic or magnetic methods in certain scenarios .
