Shape and Ovalization Measurement in Pipe Manufacturing

Traditional measurement tools like manual calipers or punctual laser micrometers have long been used for quality control, but they often miss localized defects or fail to capture the true shape of the pipe in real time. Today, the industry standard for accuracy and process control is the 3D laser profilometer. These sophisticated sensors provide manufacturers with a "digital twin" of their product as it moves down the line, enabling 100% inspection and immediate process correction .

The Problem with "Round": Understanding Ovality
Before diving into the technology, it is essential to define the problem. Ovality (or out-of-roundness) refers to the difference between the maximum and minimum outer diameters measured at a single cross-section of the pipe . Ovalization typically occurs due to residual stresses from the forming process (in ERW/HFI tubes), uneven cooling, or bending stresses applied during handling . If a pipe is ovalized:

• Welding becomes inconsistent.
• Stress concentrations form, leading to premature failure.
• Assembly issues arise when fitting into flanges or connectors.

To combat this, manufacturers require a system that captures the full 360° contour of the pipe—something a single-plane laser micrometer cannot do if the pipe is vibrating or rotating.

How 3D Laser Profilometers Work

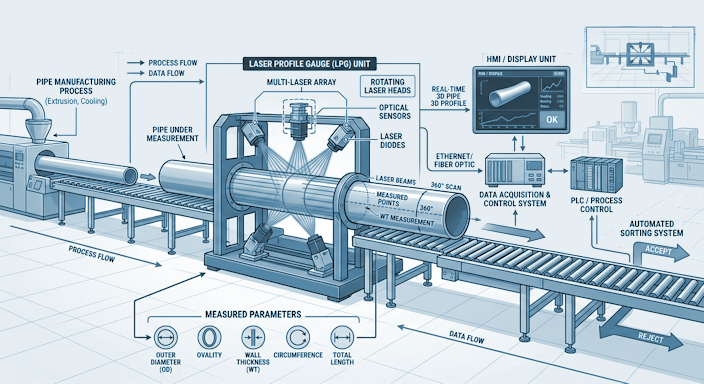

Unlike traditional point lasers that measure distance at a single spot, a 3D profilometer projects a laser line onto the target surface. A high-resolution camera sensor, mounted at a known angle to the laser (laser triangulation), captures the deformation of this line across the pipe’s surface . In a typical pipe mill configuration, manufacturers do not rely on a single sensor. To get a true 360-degree view without rotating the pipe (which introduces bending moments), multiple sensors are arranged around the circumference of the production line.

The Multi-Sensor Array Approach
High-performance systems,  utilize arrangements of up to 3 or more sensors mounted in a fixed ring . Here is how the measurement works:

• Data Capture: As the pipe travels linearly through the sensor ring (or the sensors rotate inside a stationary pipe), each sensor captures a 2D height profile (X and Z coordinates) of its segment of the pipe .
• Point Cloud Generation: The system software stitches these individual profiles together into a single 360° "point cloud" representing the exact cross-section .
• Geometric Calculation: The software applies best-fit circle algorithms to this point cloud. It calculates the Maximum Inscribed Circle (for plug gauging), Minimum Circumscribed Circle, and the Mean Circle.
• Ovality Output: The system instantly calculates the variance between the maximum and minimum radii.

Key Advantages Over Traditional Methods
The shift to laser profilometry is driven by the limitations of older technologies.

• True Shape vs. Diameter Only
  A laser micrometer typically measures two opposing axes. If a pipe is perfectly round, that is fine. However, if a pipe is "tri-lobed" (a common forming defect where the pipe has three high points), a two-axis micrometer might read it as perfectly round because the distance between axis A and axis B is within tolerance. A 3D profilometer sees the lobes because it samples thousands of points around the circumference, detecting "true shape" .
• 100% In-Line Inspection
  Historically, manufacturers spot-checked pipes offline. Modern systems operate at line speeds up to 2,000 mm/s and capture profiles at frequencies ranging from 180 Hz to 10,000 Hz . This allows for 100% inspection of every millimeter of pipe produced. If a wrinkle or ovality spike occurs due to a bearing failure, the system triggers an alarm immediately, preventing miles of scrap.
• Surface Defect Detection
  High-resolution profilometers do more than measure shape; they act as vision systems. They can detect local anomalies that affect shape, such as pits, scratches, "slivers," or weld bead irregularities (cracks/wrinkles) . The FlawSense system, for example, detects defects as small as 5 micrometers across by analyzing the texture of the 3D point cloud .

Applications Across the Manufacturing Line
The versatility of 3D profilometry allows it to be deployed at multiple stages of production:

• The Forming Section (Rolls): Early detection of edge buckling or "pipe waves" before welding.
• The Welding Area (ERW/SAW): Monitoring the weld bead geometry and flash removal. Systems like LOTOS 3D check for "bevel length and angle" at the weld seam .
• The Sizing/Straightening Section: Verifying that the straightening rolls are correcting ovalization without introducing helical marks.
• The Finishing End (Cut-off): End straightness and diameter verification are critical for threading and coupling. As noted by LIMAB, "hooked ends" are a major source of scrap that is easily caught by laser systems .

Software and Data Integration
Hardware is only half the solution. Modern systems come equipped with sophisticated software suites that transform raw data into actionable intelligence .

• Real-time Visualization: Operators see a live 2D or 3D rendering of the pipe profile on a screen.
• SPC (Statistical Process Control): The system logs every measurement to a database, providing trend analysis. If the ovality starts creeping up over an hour, the operator knows the sizing rolls are drifting before parts go out of spec.
• End-User Certification: In industries like automotive and oil & gas, end-users require a certificate of compliance. A profilometer system automatically generates these reports for every batch .
